Ovonic X4 AC500W 4 Channel Smart LiPo Battery Charger 15A Per Channel RC Car FPV Drone Multi Battery Charger with 3.5 Inch IPS Display for 1S to 6S LiPo and 3S to 18S NiMH

Ovonic X4 500W 4-Channel Smart RC Charger Precision Power for Demanding RC Enthusiasts

Ovonic X4 500W Smart RC Charger is a flagship 4-channel LiPo battery charger designed for advanced RC enthusiasts. With up to 15A per channel and dynamic power allocation (250W max per channel in dual mode), it supports 1–6S LiPo, LiHV, LiFe, and 3–18S NiMH batteries—perfect for FPV drones, RC cars, boats, trucks, and aircraft.

Engineered with 98% energy conversion efficiency, ±10mV voltage precision, and a bright 3.5-inch IPS color display, the Ovonic X4 ensures safe, fast, and accurate multi-battery charging. Whether you fly FPV, race 1/10 RC cars, or bash with high-capacity 6S packs, this multi-channel smart charger offers full control and pro-level performance—making it one of the best RC LiPo chargers of 2025.

Key Advantages:

✅ Unmatched Power Allocation

• 500W Total Output (250W max per channel in 1–2 channel mode) for rapid charging.

• Dynamic Load Balancing: Automatically optimizes power distribution across 1–4 channels (125W–250W per channel).

✅ Industry-Leading Efficiency

• 98% Synchronous Rectification Tech minimizes energy loss vs. traditional diode designs (typically <90%), reducing heat and charge times.

✅ Universal Battery Compatibility

• Charges 1–6S LiPo/LiHV/LiFe/Li-Ion and 3–18S NiMH/NiCd—ideal for drones, RC cars, planes, and marine models.

• Included Adapter Kit: XT60 to EC5/XT30/T-Plug for hassle-free connectivity.

✅ Pro-Grade Monitoring & Safety

• 3.5" IPS Color Display: Real-time tracking of voltage, current, internal resistance, and capacity per channel.

• 6-Point Protection: Overvoltage, reverse polarity, short circuit, overcurrent, overheat, and cell mismatch alerts.

✅ Built for the Field

• Physical Buttons > Touchscreens: Tactile controls resist glove interference and dust.

• Wide Temp Range: Operates flawlessly from -10°C to 45°C (14°F to 113°F).

Highlights:

🔥 500W Total Power - Industry-leading output for fastest charging
⚡ 4 Independent Channels - Charge multiple batteries simultaneously
🎯 98% Conversion Efficiency - Advanced synchronous rectification tech
🔋 1-6S LiPo/LiHV/LiFe + 3-18S NiMH - Full battery compatibility
📊 ±10mV Voltage Accuracy - Precision cell balancing
🖥 3.5" IPS Color Display - Real-time multi-channel monitoring

Specifications:

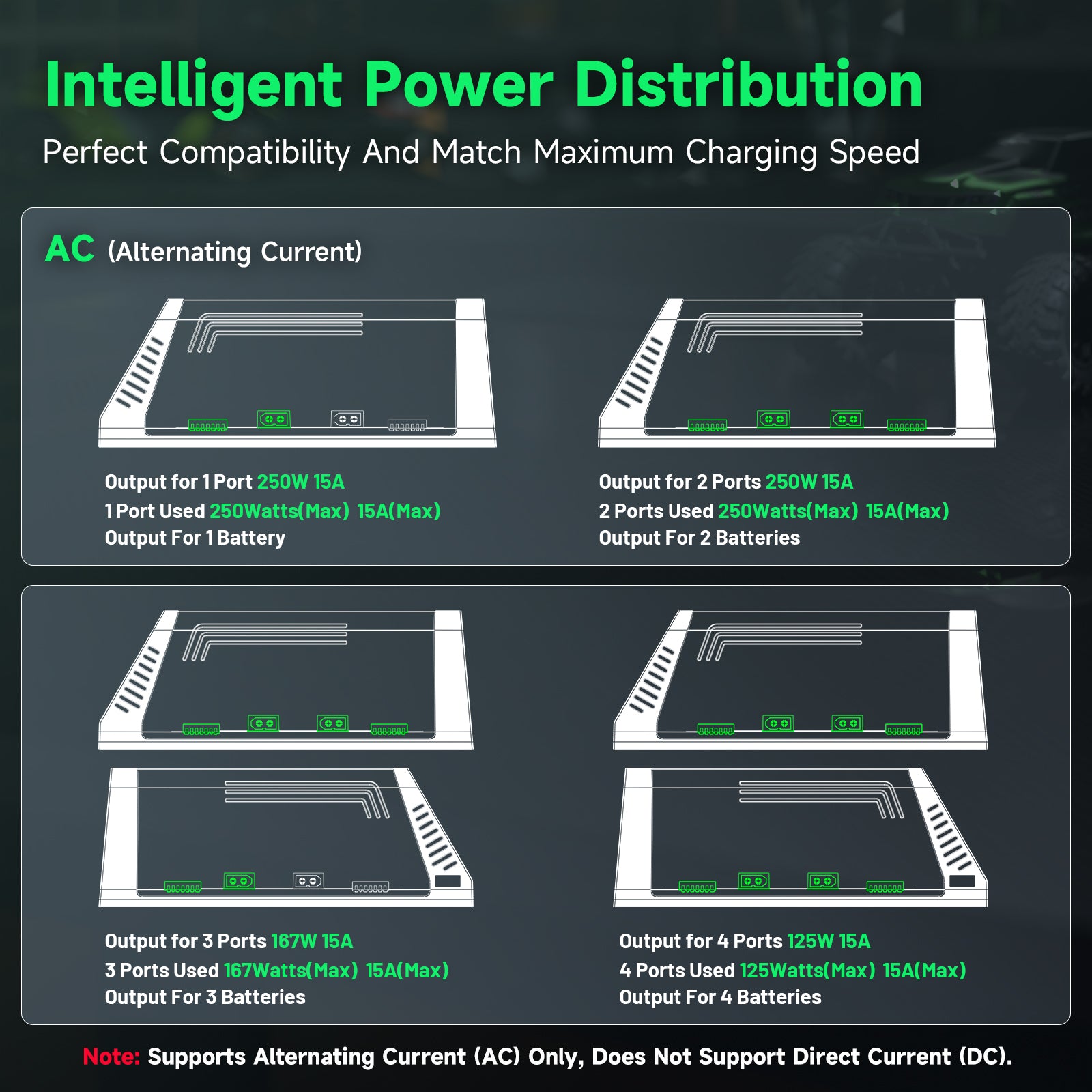

• Charging Power (Per Channel):

  • Single/Dual Channel: Max 250W

  • Three Channels: Max 167W

  • Four Channels: Max 125W

  • Total Output Power: 500W

• Input Voltage: 100–240V AC, 50–60Hz

• Input Current: 5A

• Battery Types Supported:

  • LiPo / Li-Ion / LiHV / LiFe: 1–6S

  • NiMH / NiCd: 3–18S

• Charging Current: Up to 15A per channel

• Balance Charge Current: 1.2A per cell (max)

• Discharge Current: 0.1–1A (automatic)

• Output Voltage Range: DC 0–27V

• Voltage Accuracy: ±10mV

• Channels: 4

• Balance Port: JST, 1–6S

• Input Interface: AC Power Port

• Output Interface: XT60PW-M

• Display: 3.5-inch IPS screen

• Operating Temp: -10°C to 45°C (14°F to 113°F)

• Storage Temp: -20°C to 60°C (-4°F to 140°F)

• Dimensions: Approx. 198 × 116 × 75 mm

• Weight: Approx. 1000g

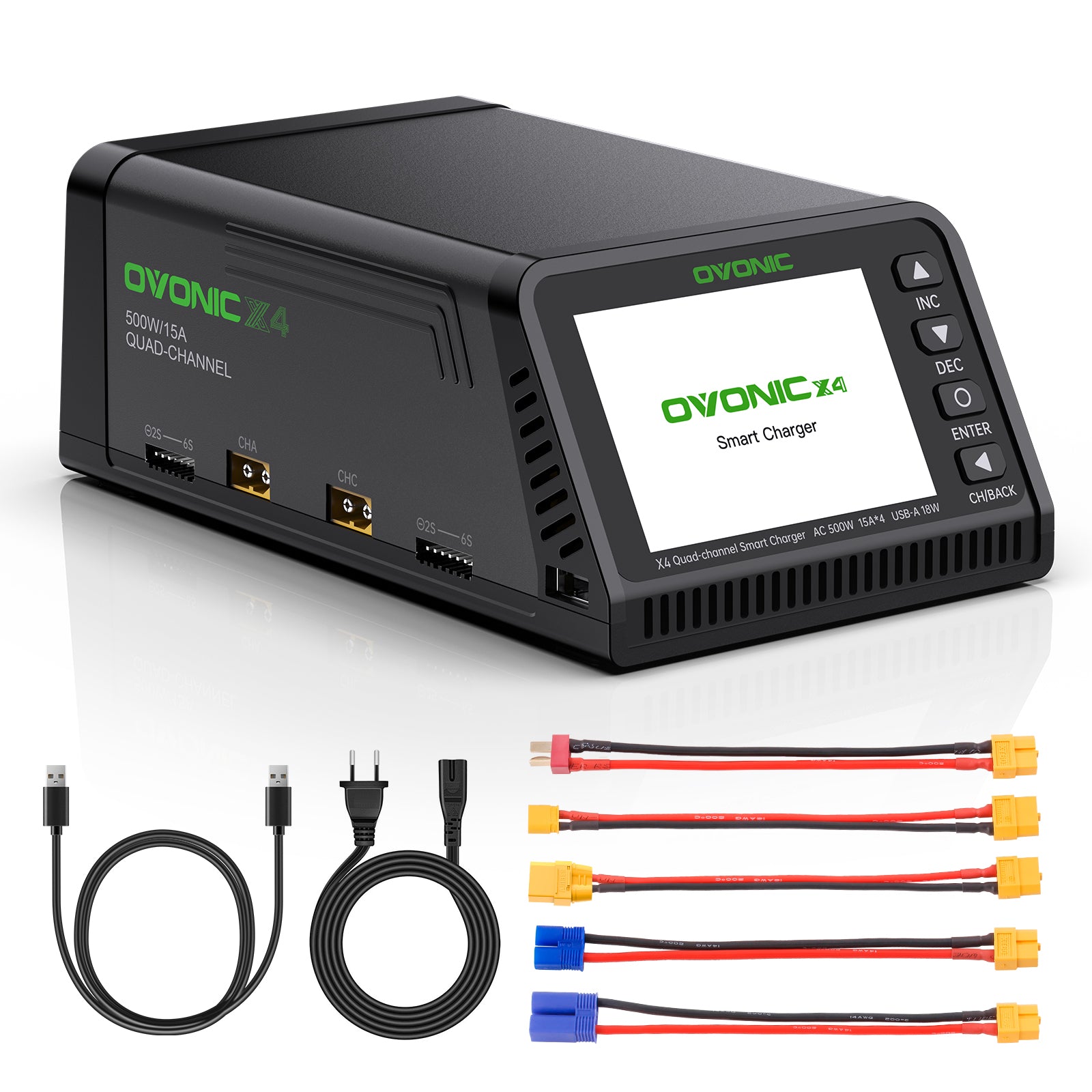

📦 What’s in the Box:

• 1× Ovonic X4 Charger

• 1× AC Power Cable

• 1× USB-A Cable

• 1× XT60 to Deans Adapter

• 1× XT60 to EC5 Adapter

• 1× XT60 to EC3 Adapter

• 1× XT60 to XT30 Adapter

• 1× XT60 to XT90 Adapter

• 1× User Manual

• 1× Packing Box

🔧 Download:

Ovonic X4 Charger Software & Firmware Update Tool
Download the latest firmware or desktop utility for advanced features and performance updates.
Downlaod Center

More Choice for You:

• Ovonic Mate 2 200W 12A Smart Charger
• Ovonic Mate 1 100W 10A Smart LiPo Battery Charger
• Ovonic X1 Pro Dual Channel Charger AC300W/DC700W 16A
• Ovonic D15 Dual Charger 30W AC100-240V
• Ovonic X1 Dual Channel LiPo Charger AC200W/DC300W

🚀 Why Choose Ovonic X4?

✅ High Power + Multi-Channel Flexibility – Charge 4 batteries simultaneously at 125W each
✅ Pro-Level Precision – Lab-grade accuracy (±10mV) for peak battery performance
✅ Ultimate Safety – CE/FCC certified with 6-layer protection
✅ Field-Ready Design – Rugged construction for reliable use in any environment

Ideal for: Competitive racers, FPV pilots, and hobbyists who refuse to settle for "good enough."
