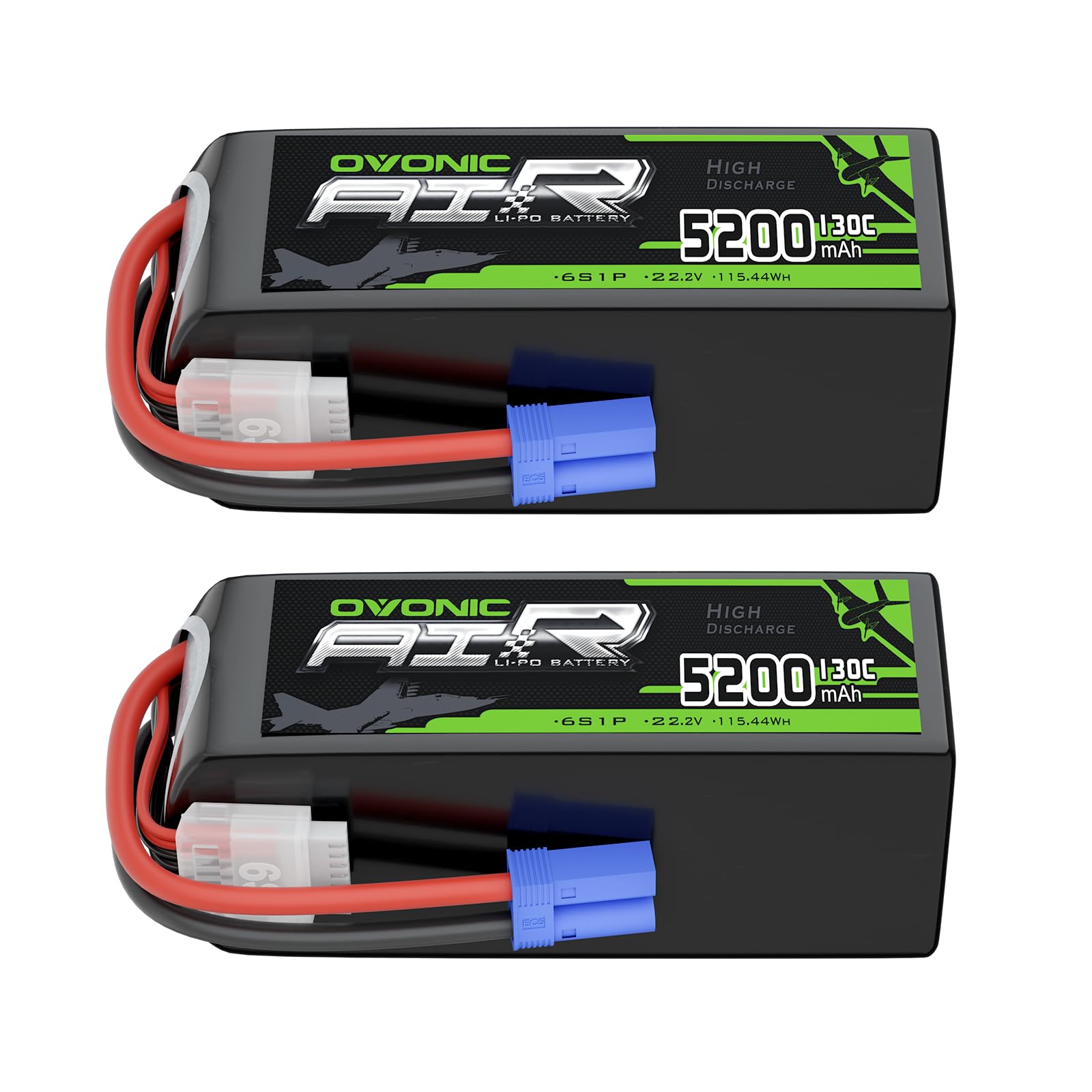

2-Pack OVONIC 6S 5200mAh 22.2V 130C LiPo Battery with EC5 Plug for ARRMA 6S Kraton Mojave 1/8 RC Car EDF Jet Airplane

Overview

High-power 6S RC bashers, large EDF jets, and competitive 600-class helicopters demand immediate, uncompromised power. Standard 6S LiPo batteries frequently suffer from mid-run voltage sag, sudden power drops, and excessive heat buildup, which can cause thermal ESC shut-offs and reduce motor efficiency.

The OVONIC 6S 5200mAh 22.2V 130C LiPo Battery Pack is engineered with advanced cell stacking technology to deliver relentless current without power bottlenecks. Combining a powerful 5200mAh capacity reserve with an extreme 130C continuous discharge rate (260C peak burst), this high-density soft case pack maintains flat voltage under peak throttle demands, giving you maximum wheelie punch, faster acceleration, and longer runtimes.

Primary Applications & Compatibility

This high-discharge, heavy-duty 6S battery is optimized for popular 1/8 scale surface rigs and demanding aviation platforms:

• 1/8 Scale ARRMA 6S BLX Bashing Series: Ideal direct upgrade for true 6S setups including the ARRMA Kraton 6S BLX, Typhon 6S BLX, Talion 6S BLX, Mojave 6S BLX, and Notorious 6S, providing maximum speed and torque without voltage drop.

• High-Performance 1/8 Buggies & Rigs: Fits competitive platforms like the Losi 8IGHT-E Series, Team Associated RC8B3.2e, and Traxxas E-Revo V2 (6S setup).

• Large EDF Jets, Helicopters & Boats: Delivers steady high amperage for 80mm–90mm EDF Jets (e.g., E-flite, Freewing), 600-class helicopters (e.g., Align T-Rex 600), and high-speed RC marine setups requiring an EC5 connector.

Five Key Features

• Extreme 130C Continuous (260C Burst) Power: Guarantees instantaneous throttle response and sustained current delivery, preventing mid-run voltage sag.

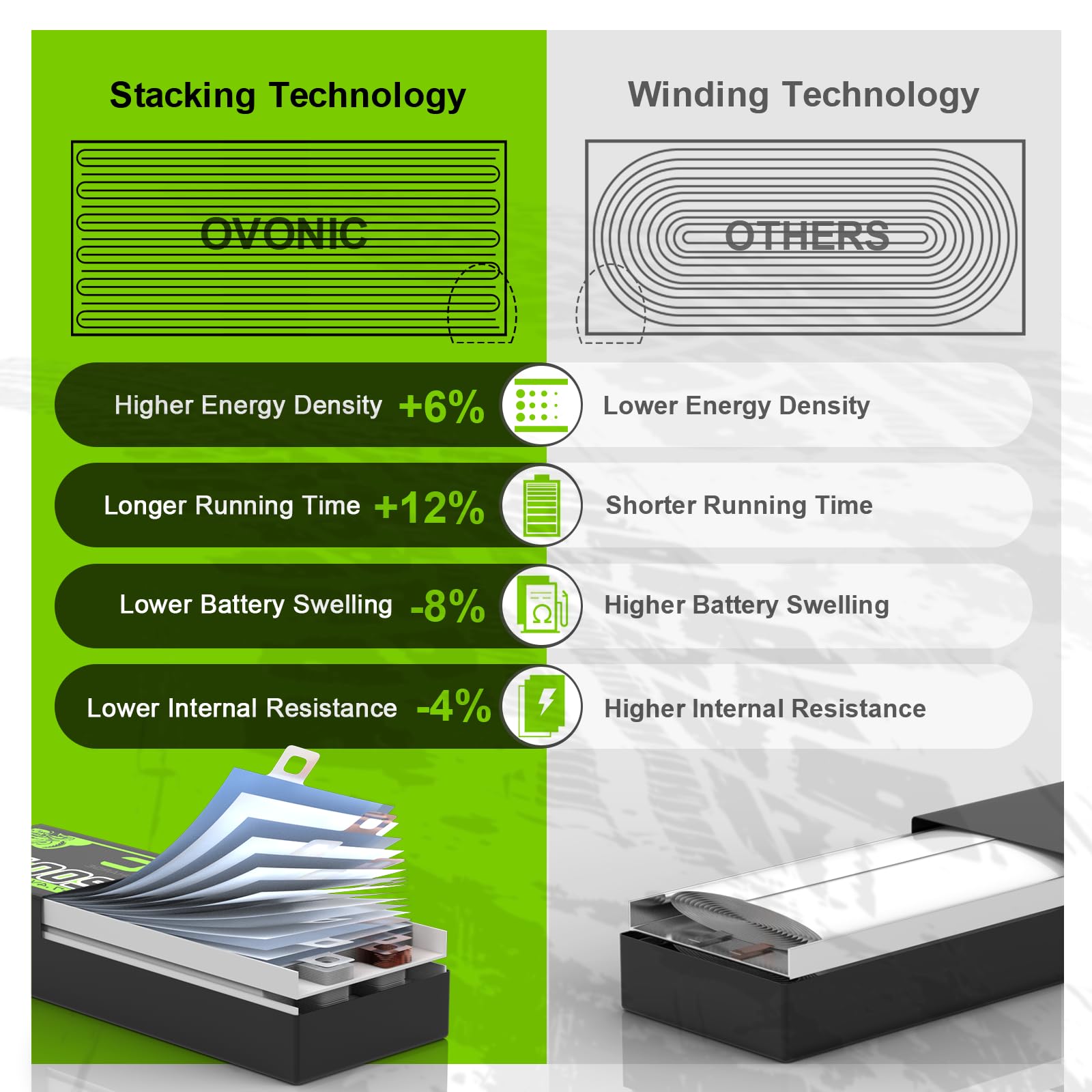

• Advanced Stacking Technology: Delivers +6% energy density, lower internal resistance (-4%), and lighter weight (-5%) for superior discharge efficiency and a 350+ cycle life.

• High-Capacity 5200mAh Stamina: Provides up to +12% longer running time per charge compared to standard capacity packs, keeping you in action longer.

• Pre-Soldered EC5 High-Current Plug: Heavy-duty, low-resistance EC5 plug safely handles high amp spikes and prevents connector overheating under peak load.

• Smart 2-Pack Value: Includes two high-discharge 6S batteries to double your track, field, or water time with minimal charging downtime.

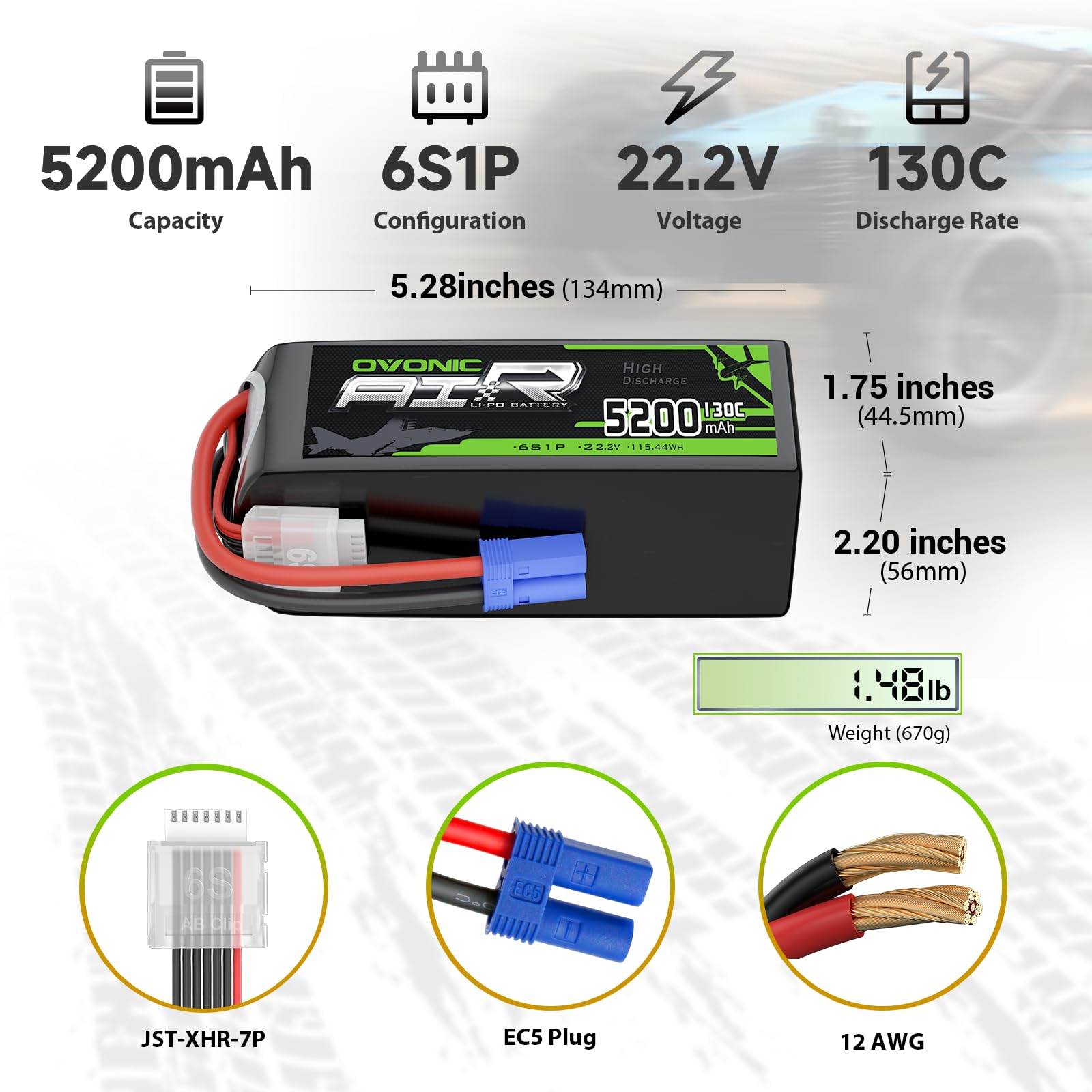

Specification

• Brand: OVONIC

• Battery Type: Lithium Polymer (LiPo)

• Configuration: 22.2V / 6S1P / 6 Cells

• Capacity: 5200mAh

• Voltage: 22.2V

• Discharge Rate: 130C Continuous (260C Peak Burst)

• Energy: 115.44Wh

• Connector Type: EC5 Plug

• Balance Connector: JST-XHR-7P (7-Pin Balance Plug)

• Dimensions: 134 × 45 × 56 mm (±3mm tolerance) | 5.28 × 1.75 × 2.20 in (±0.12in tolerance)

• Net Weight: 671 g (±5g tolerance) | 1.48 lbs (±0.01lb tolerance)

• Pack Quantity: 2-Pack

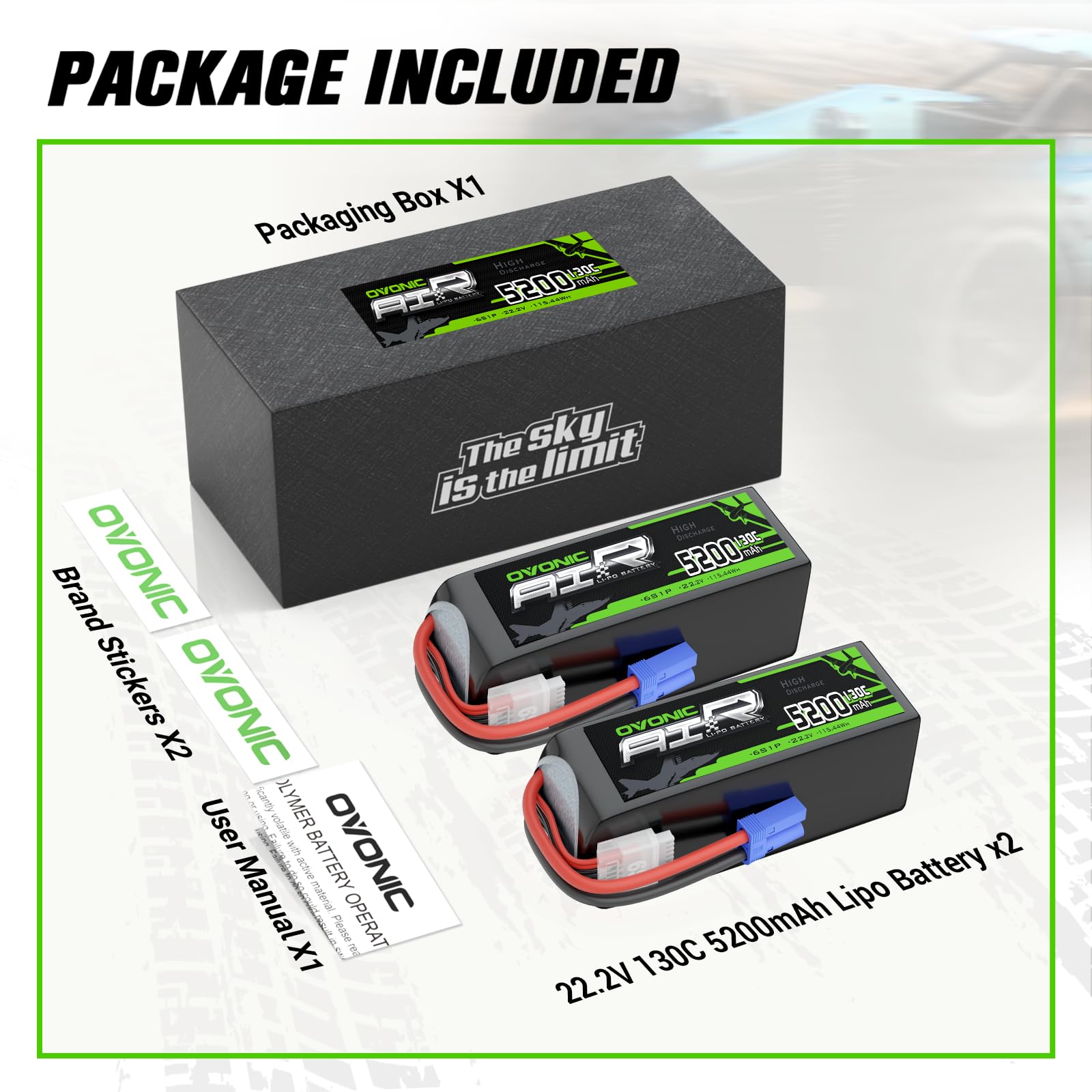

What's in the Box

• 2 × OVONIC 6S 5200mAh 22.2V 130C LiPo Batteries with EC5 Plug

• 2 × OVONIC Brand Stickers

• 1 × User Manual

Safety & Maintenance Guidelines

• Voltage & Connector Match: Always verify that your vehicle's ESC supports 6S (22.2V) and that battery tray dimensions and connectors (EC5) are compatible before use.

• Charging Protocol: Always use a dedicated LiPo Balance Charger (e.g., official OVONIC chargers). Never charge at rates exceeding 1C (5.2A), never charge above 4.2V per cell, and never charge unattended.

• Prevent Over-Discharge: Cease operation immediately when individual cell voltage drops to 3.5V under load. Never let cell voltage drop below 3.2V to avoid permanent chemical damage.

• Conditioning New Packs: If a new pack shows uneven capacity initially, perform 2 to 3 gentle balance charge/discharge cycles to restore full balance.

• Safe Storage: Store in a fireproof LiPo safety bag at a nominal storage voltage of 3.8V–3.85V per cell in a cool, dry area away from direct sunlight.
